CONDUCTIVE ELASTOMER

A. XYZ Conductive Elastomer

The XYZ conductive Elastomer is composite material that is made by high performance silicone rubber,
conductive filler ( C,Ni/C, Ag/Al, Ni/Al , Ag/G , Ag/Ni , Ag/Cu, )and additives. This material has high conductivity and
provides an optimal combination of perfect EMI/RFI shielding effectiveness and excellent environmental sealing,
which can be widely used in anti-electromagnetic interference and pressure, environmental sealing and other occasions .

Features

  • • Shielding effectiveness£º ¡Ã70dB
  • • Compressive resistance, Excellent environmental sealing
  • • Very low resistivity
  • • RoHS compliance
  • • Excellent ESD and EMI shielding effectiveness

Application

  • • Military Industry
  • • Switches, base station construction
  • • Test equipment, high-speed network equipment
  • • Medical electronics and other electronics industries

B. Non-Conductive Elastomer

Non-conductive elastomer gasket is a common sealing product. The main ingredient is silicone rubber, whose sealing property is very stable, and is widely used in waterproof, damp proof, dust proof and other enclosure environment

Features

  • • A variety of UL fire ratings
  • • Full selections of rubber hoses, gaskets and molded rings
  • • Various colors to choose from
  • • Customized design available

Application

  • • Military Industry
  • • Switches, base station construction
  • • Test equipment, high-speed network equipment
  • • Medical electronics and other electronics industries

C. Co-extrusion Conductive Elastomer

Co-extrusion conductive elastomers are one kind of high performance combination materials. The gasket cross section shapes and size which is specially designed can be co-extruded. The conductive elastomers are extruded in parallel with non-conductive elastomers to provide EMI shielding and corrosion protection from one gasket. The outer, non-conductive gasket acts as an extra environmental seal to keep moisture away from the conductive gasket interface. Co-extruded elastomers are also cost-effective, as they permit the use of existing flange designs and provide for gasket attachment via a less expensive non-conductive elastomers. As well, the environmental sealing performance is improved.

Features

  • • Shielding effectiveness£º ¡Ã100dB
  • • Compressive resistance, Excellent environmental sealing
  • • Very low resistivity
  • • RoHS compliance
  • • Excellent ESD and EMI shielding effectiveness

Application

  • • Military Industry
  • • Switches, base station construction
  • • Test equipment, high-speed network equipment
  • • Medical electronics and other electronics industries

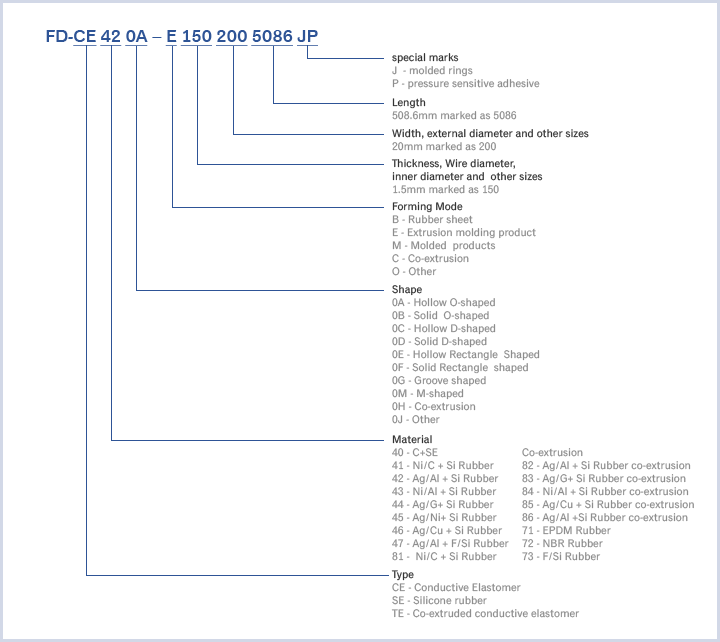

Rule of Part Number

Please contact us for any detailed information or specific needs.
